Semi Automatic Packing Machine 1-5kg
Components

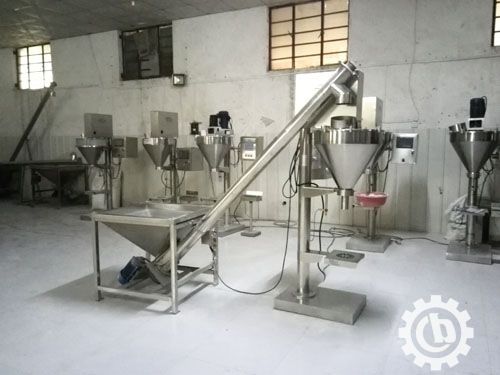

The quantitative semi automatic packing machine was mainly composed by host machine, weighing device, PLC and hoist, etc. The whole machine was made by stainless steel. Packing machine spiral was designed by removable assembly; it is convenient for clean up the
equipment after work.
Main features of host machine
1. PLC Controlling Meter with display screen
2. Save the shift output, daily output and accumulated output automatically.
3. Infrared sensor, dropping the materials with screw, more energy saving.
4. Technical data:
| Model | DCS-5 |
| Weighting range | 1kg-5kg/bag |
| Capacity | 5-12bag/min |
| Power | 0.95KW |
| Voltage (V/Hz) | (3PH)AC380/50 |
| Precision | ±1%FS |
| Air source pressure | 0.4-0.6 Mpa |
| Application | Flour |
| Dimension | 850*850*1950mm |
| Net weight | 280kg |
