BCH600 Chili Powder Production Line Hotsale Widely Using
Processing Flow Chart for BCH600 powder production line
conveyor-destoner-dry cleaning machine-conveyor-crusher-cyclone-buffer silo-magnetic separator-3 units chili grinder-cyclone collector-chili powder collect.We can customize this configuration according to different customer needs.

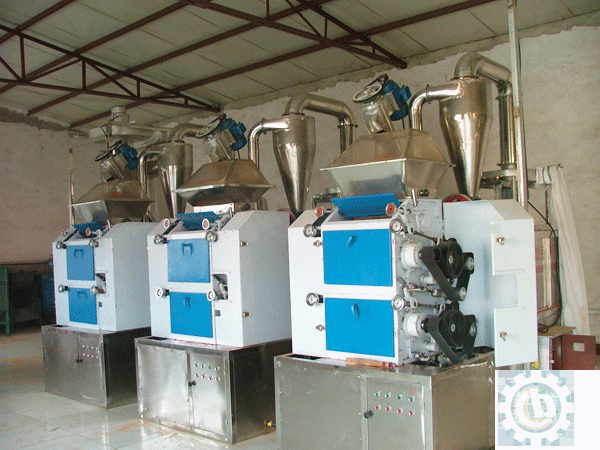

Introduction of chili grinder:
1.BCH series chili powder grinding machine is the patent machinery, by adopting the roller milling type producing spice powder. It can be applied to many less oily spices, such as ginger, garlic, pepper, fennel, cumin, turmeric, etc.
2.By roller squeezing, instead of blade crush, it can keep material natural smell and color, which are the most attractive points to customers; it is no problem if for not remove seeds and stem.
3.Newly updated grinder is more convenient for client to use and already exported and using in several countries, like India, Sri Lanka, Malaysia, Mexico, Nigeria, etc. We can provide customized configuration and provide related machineries.
1.Output: process 600kg/h.
2.The total power: grinders 87.5KW, the voltage: 380V, 50HZ
Weight about 4.8t bulk 21m3
3. The size of workshop. It needs a workshop, the length of the workshop is 7m, the span is 3.5m, and the height is 3.5m. ..
4. Man power requirement: 1-2 persons.
The 2 pairs of rollers will press and shear to the raw materials, which will get to the final powder goal. The materials discharged from the rollers will enter to the prolonged cylinder to sift. The qualified mesh powder will be packed, and the unqualified powder will be sent to the roller again by the auger automatically.
